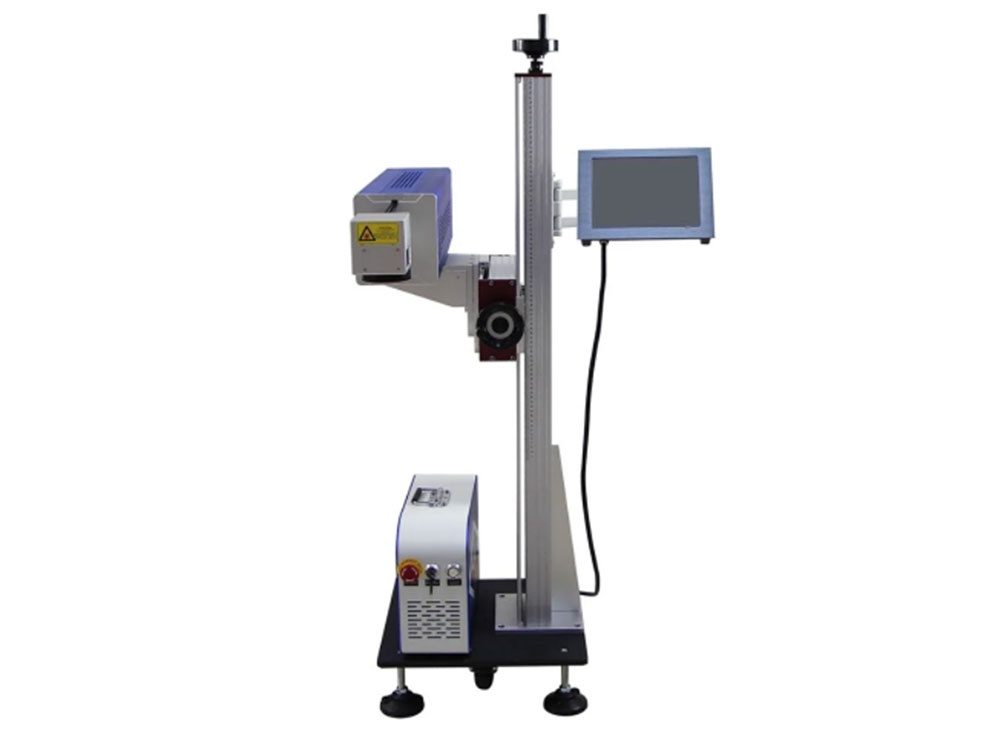

china IF15M CO2 Laser Marking Machine

IF15M CO2 Laser Marking Machine

1.Long lifetime, over 100,000 hours.
2.2 to 5 times efficiency more than traditional marking.
3.Mark on both metal and non-metal.
4.Without any maintenance, air-cooled.
5.USB interfaces swift and stable transmission.
6.High accuracy and repeatability for marks.
7.Professional control board and marking software.
8.Stable output power, excellent beam quality.
9.Professional appearance, easy to operate.

CO2 laser marking machineuses CO2 gas in a sealed tube as a laser source to mark date codes, serial numbers, and other product identification on wood, glass, acrylic, rubber, plastics, cardboard, and product packaging.
Our machine can achieve high-speed marking while maintaining mark quality, providing non-contrast marking in plastics as well as ink removal for date coding.
Being one of the leading manufacturers and suppliers of laser machines in China we ensure you to give the best cost-effective solution for your Company.

Laser Type	CO2
Laser Power	15W / 30W
Working area	70X70mm/ 110X110mm/ 175X175mm
Minimum Line Width	0.2mm
Minimum Character	1.5mm
Laser Wavelength	1064mm
Marking Speed	less than 7000mm/s
Weight	50KG
Supply voltage	AC220V±10%，50/60Hz
Overall dimension(mm)	180X 500X 320(Power box) 500X 1080X 1500(Lifter)
Work Environment	Temp：5~35°C，Humidity：5~85% ，Clean , less dust
Power	< 2000W

Feature

1. High speed digital galvo scanner, industrial CO2 laser source, embedded flying marking controller, high intergradation, more compacted design, less power consumption and stable performance.

2. Clear, high speed ,high precision and controlled engraving. High speed scanning galvanometer for optimum performance.

3. Touch screen with friendly HMI, simple and easy operation process.Robust industrial design to prevent the laser light leaking and hence make it more safe for the operator.

4. Module design,separate cabinet and lifting system, lifter is flexible to adopts Different production lines.

5. No consumables, low processing cost, the service life of the laser is upto 20000 to 30000 hours .

6. Powerful functions: Support DXF, PLT vector graphics, bitmap fonts, TTF, DIY fonts and photos input, Support extra-long distance marking, tubes segment marking and bar code, QR code fly marking.

Application

CO2 lasers produce long-wave infrared light, which is well suited for laser engraving and laser cutting many non-metal materials, such as wood, plastic, glass, ceramic, leather, stone and other organic-like materials.
It is widely used in consumer goods, food packaging, feed packaging, medicine packaging, building ceramics, clothing accessories, textile cutting, craft gifts, rubber products, jeans and other industry.
