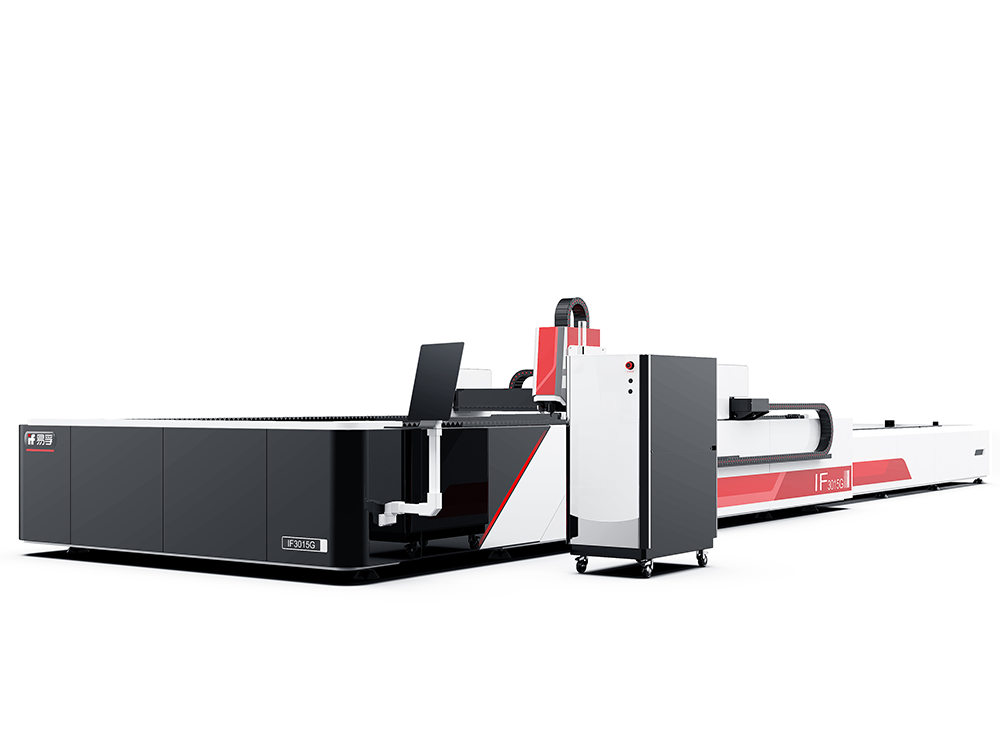

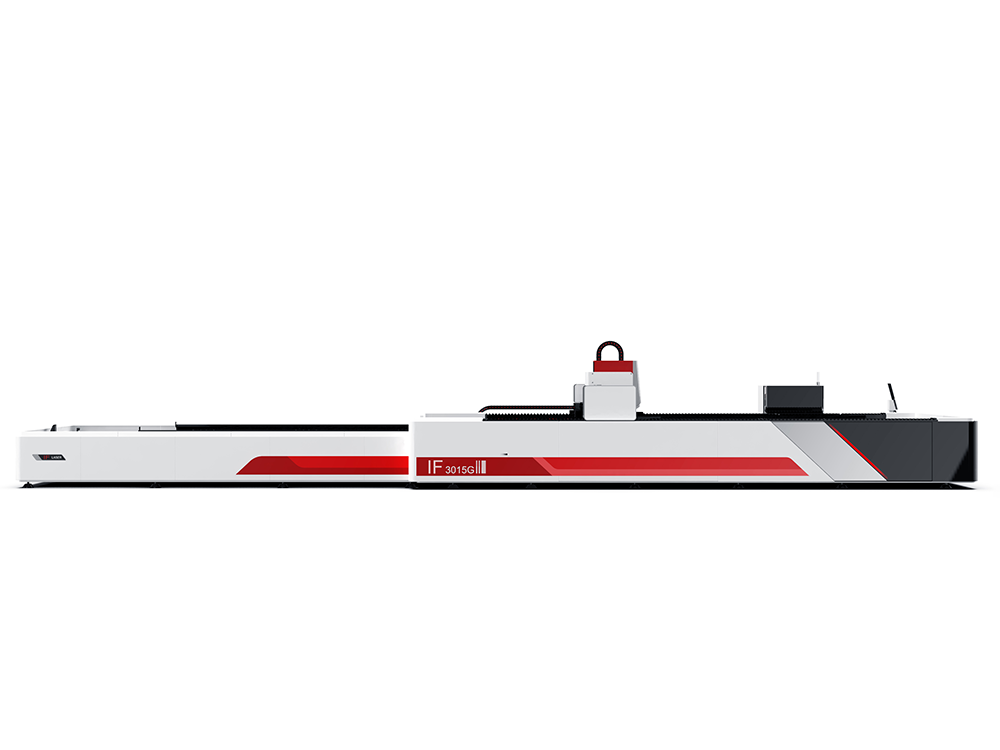

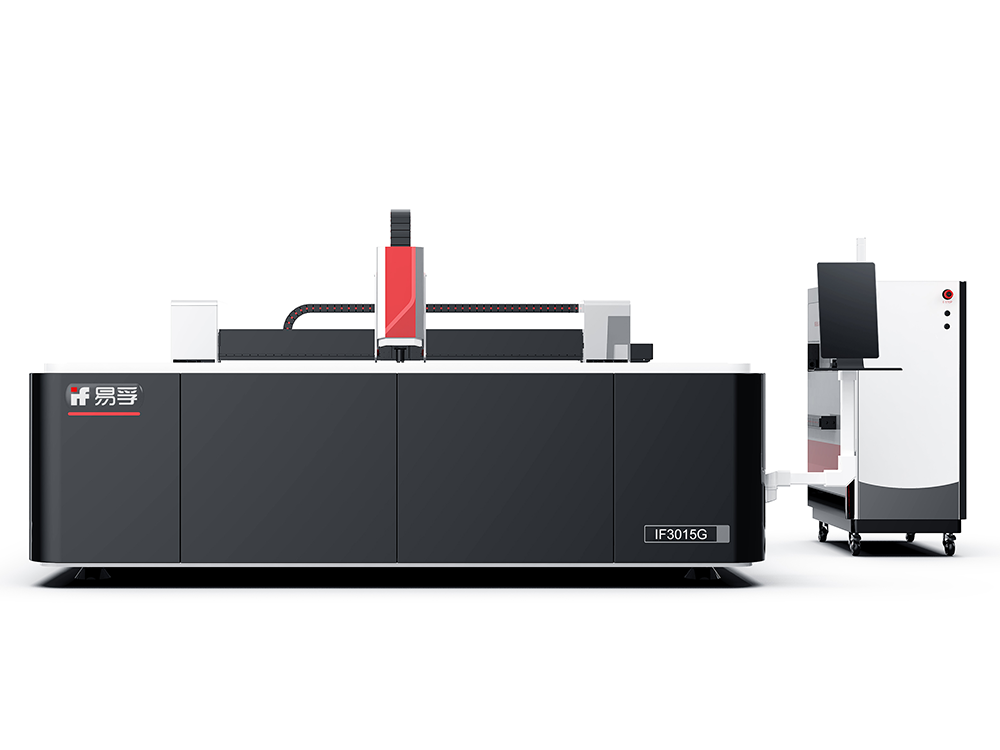

IF4020G Fiber Laser Metal Cutting Machine with Open Exchange Worktable

1. Standard duty machine frame and aviation aluminum gantry.
2. Extremely fast exchange platform time.
3. Active anti-collision function.
4. Intelligent Design Software.
5. High-performing Servo-driven motor and speed reducer.
6. Mortise-and-tenon type plate welded.
7. Gas-saving steady flow nozzle.
8. Low maintenance cost.

IF4020G series comes standard with two shuttling worktables which greatly save your feeding time. Normally it needs several minutes to change the processing metal sheets. However, our table exchangeable fiber laser cutting machine enables you to change the metal sheets within 15 seconds, increases working efficiency.

Feature

1. Super fast platform exchange in 8 seconds. Equipped with hexagonal steel wheels and powerful pneumatic tightening, the built-in wheels move smoothly. A complete table exchange can be done in 8 seconds.

2. Gantry double rack & pinion, double servo motor drive system, 1G acceleration to ensure higher production efficiency.

3. Intensive chassis with high rigidity has high precision and stability effectively eliminating the shock in high-speed cutting.

4. Imported large gantry milling machine, tempering treatment and vibration aging to eliminate stress, its geometric accuracy is within 0.03mm.

5. Crossbeam are made through drawing and finishing process: Lightweight, high rigidity, high dynamic performance.

6. Professional nesting software, automatic nesting and sharp corner smoothing functions, can achieve high-speed piercing and fast array scanning cutting functions.

7. Integrated structure, the overall layout is compact, reasonable and less space.

8. Germany IPG laser generator has high wall-plug efficiency over 30%, greatly saving power and achieving the highest efficiency.

9. Less running cost, high pressure air/N2/O2 help to get smooth cutting edge.

10. Equipped with bus control system, strong anti-interference ability and superior stability.

Product Parameters
Model	IF-3015G	IF-4020G	IF-6020G	IF-6025G
Working Area	1530×3050mm	2030×4050mm	2030×6050mm	2530×6050mm
Max Linkage Speed	100m/min	100m/min	100m/min	100m/min
Max Acceleration	1.0G	1.0G	1.0G	1.0G
Positional Accuracy	±0.03mm	±0.03mm	±0.03mm	±0.03mm
Re-positional Accuracy	±0.02mm	±0.02mm	±0.02mm	±0.02mm
Power	380V 50/60Hz 50A	380V 50/60Hz 50A	380V 50/60Hz 50A	380V 50/60Hz 50A
Max Loading(KG)	≤4000	≤6000	≤6000	≤6000

Laser cutting process parameters
	1KW	1.5KW	2KW	3KW	6KW
Carbon Steel(mm)	0.4-12	0.4-16	0.4-18	0.4-20	0.4-25
Stainless Steel(mm)	0.4-5	0.4-6	0.4-8	0.4-12	0.4-12
Aluminum (mm)	0.4-3	0.4-5	0.4-6	0.4-8	0.4-12
Brass (mm)	0.4-3	0.4-5	0.4-6	0.4-6	0.4-8

Application

IF4020G series is professional in processing various metal sheets, such as stainless steel, carbon steel, mild steel, iron, galvanized steel, titanium steel, silicon steel, brass, aluminum, titanium alloy, brass, copper, silver, gold, etc.
Thanks to the versatility of the machine and high quality cutting performance, it is widely used in many industries and daily life including machine manufacture industry, elevator industry, auto parts making, electrical parts making, locomotive manufacturing, agriculture, and forestry machinery manufacturing, special vehicles, household appliances, tools, IT industry, kitchen supplies, decorations, craft, jewelry, etc.Industry application
