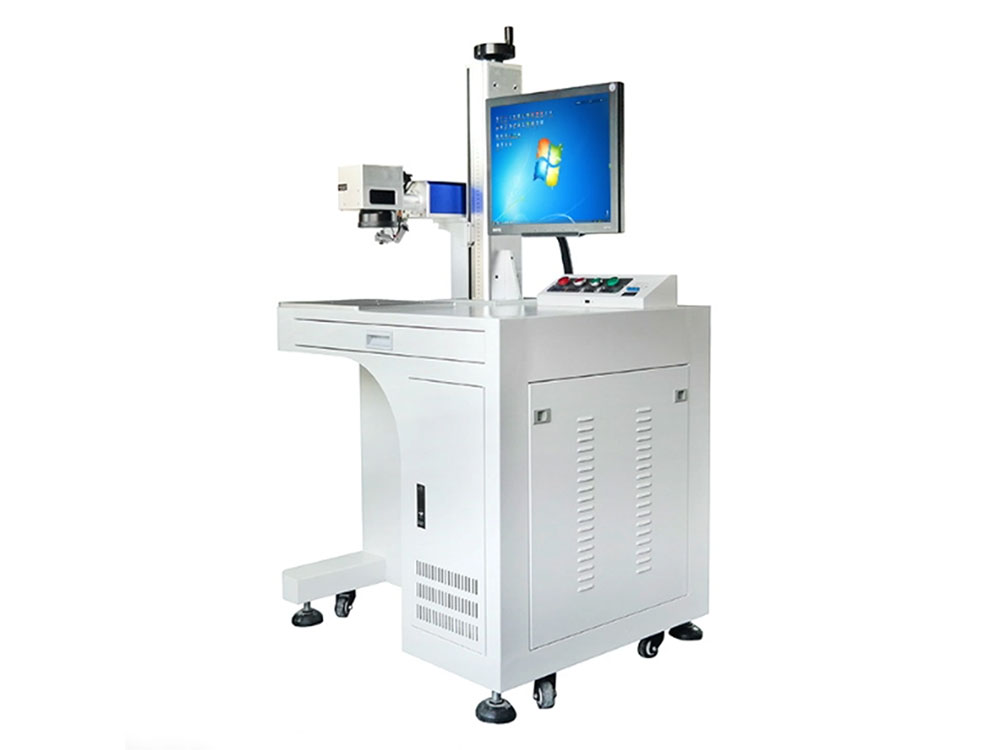

china IF50M 50W Fiber Laser Marking Machine For Metal Engrave With PC

IF50M 50W Fiber Laser Marking Machine For Metal Engrave With PC

1.Long lifetime, over 100,000 hours.
2.2 to 5 times efficiency more than traditional marking.
3.Mark on both metal and non-metal.
4.Without any maintenance, air-cooled.
5.USB interfaces swift and stable transmission.
6.High accuracy and repeatability for marks.
7.Professional control board and marking software.
8.Stable output power, excellent beam quality.
9.Professional appearance, easy to operate.

Fiber laser marking machine expose the deep layer through the evaporation of the surface material, or to make the light/optical energy produce “engraving” traces through the chemical and physical changes, or to display the required patterns, text, etc. through the light energy burning certain materials. The machine can mark numbers, Chinese characters, English letters, graphics support automatic encoding, serial number, batch number, date barcode, QR code, etc.

The trace of laser engraving is permanent and will not be eroded or easily erased.
High quality beams can be focused to a very small point. Combined with high energy density. Produce accurate and repeatable marking in a short time.
Industrial interface, strong compatibility. All digital board is suitable for most PLCs, reducing the time and cost of installation and programming.

Fiber Laser Marking Materials
Metals	Non-Metals
Gold	Wood
Silver	Cloth
Brass	Acrylic
Copper	Coating film
Carbon Steel	Rubber
Stainless Steel	Paper
Aluminum	Plastic
Anodized Aluminum	Leather
Titanium	PVC
Chrome	ABS
	Silicon wafer
	Ceramics
	Plastic
	Epoxy resin

Model	Fiber Laser Marking Machine
Average Output Power	20W-150W
Linear Speed	≤8000mm/s
Marking Area	70×70mm 110×110mm 150x150mm 200x200mm 300x300mm
Min Character Height	0.2mm
Marking Speed	≤4000mm/s
Marking Depth	≤1mm(depending on materials)
Min Linear Width	0.06mm
Power stability	<3%rms
Wave length	1064nm

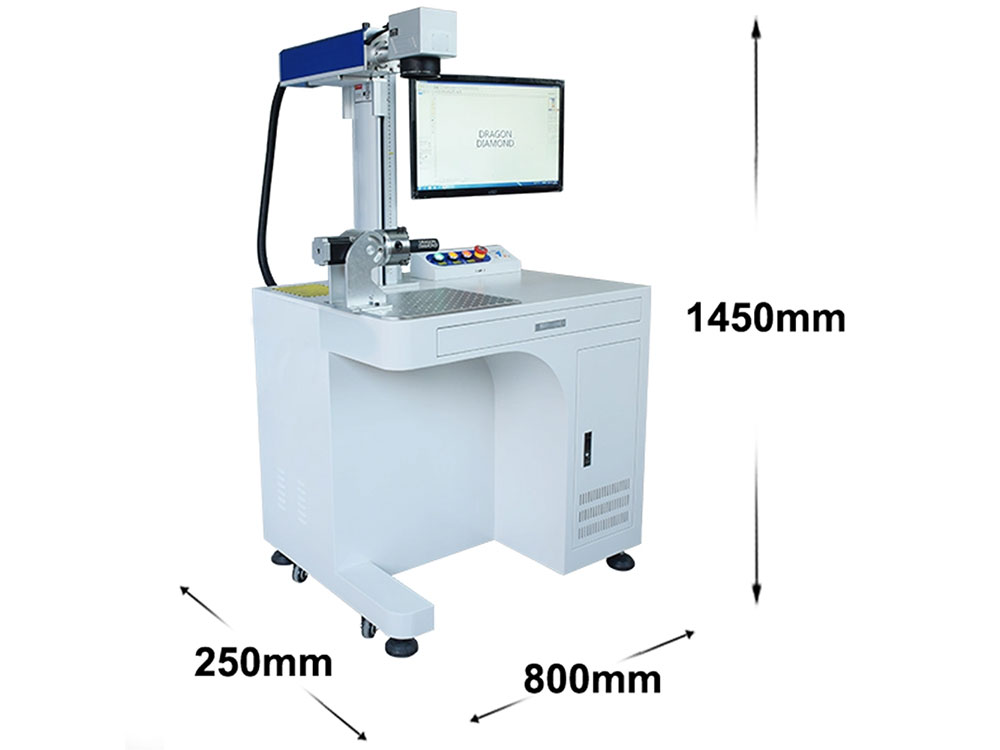

Machine Weight	120kg
Resolution	15μRad
Repeatability	8μRad
Input Aperture	10mm
Frequency	≤900Hz

Feature

1. Marking speed is fast, efficient, and high accuracy.
2. Long lifetime, over 100,000 hours.
3. 2 to 5 times more productive a traditional laser marker or laser engraver.
4. Super quality galvanometer scanning system.
5. High accuracy and repeatability for correct marks each time with galvanometer scanners and electronic controls.
6. More stable performance.
7.Professional control board and marking software.The software controlling system has the interface of windows andcomprises files output by software such as Coreldraw, AutoCAD,Photoshop etc. It can support various file formats suchas PLT,DXF,PCX,BMP etc.
8. Output power is stable, optical mode is good, beam quality is excellent.

Application

Fiber laser deep engraving machine is used for marking and engraving on metals (stainless steel, aluminum, alloy, brass, sliver, gold, titanium, iron) and nonmetal surface, such as firearms, rings, bearings, gears, automotive parts, hardware and tools, aerospace components, integrated circuit chips, computer accessories, watches, electronics and communications products, home appliances, wire and cable, Jewelry, adornments, necklace, bracelet and many other areas of graphics and text markup.
