china IF60220T Economical Metal Tube Fiber Laser Cutting Machine

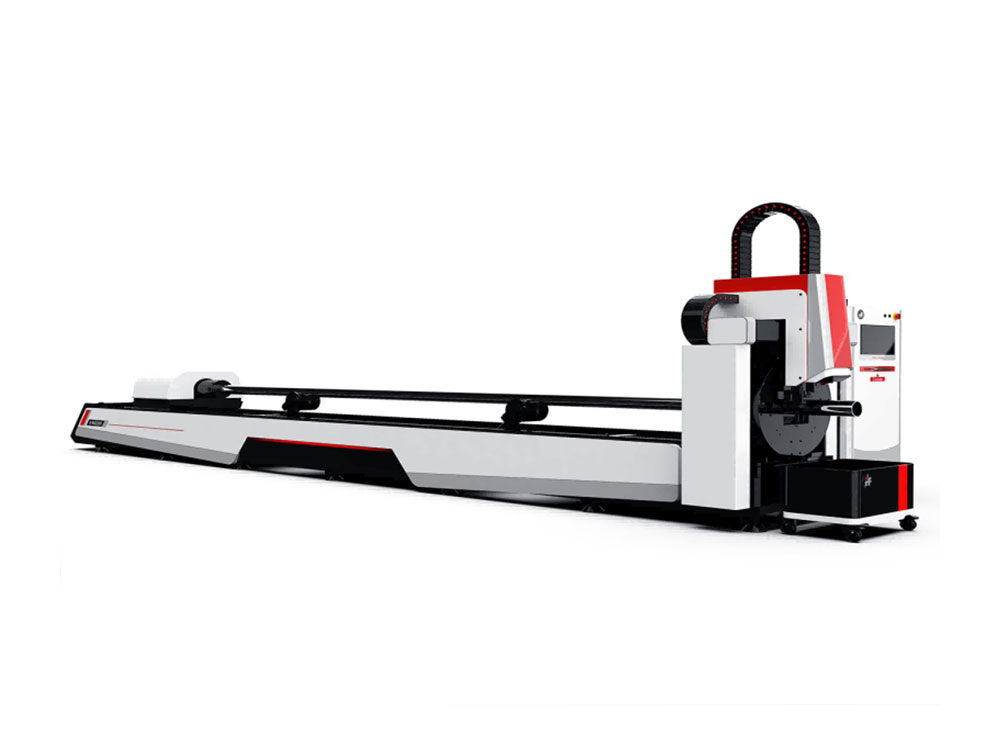

IF60220T Economical Metal Tube Fiber Laser Cutting Machine

1. Suitable for round, square, rectangular, oval, rounded rectangular, angle steel, channel steel and other tubes various shapes.
2. Lightning perforation technology and high speed cutting expert database.
3. Automatic tube inspection：edge-seeking, center-finding.
4. Jaw position control.
5. Automatic adjustment of cutting gas(O2) pressure.
6. Anti-slag protection and gas-saving steady flow nozzle.
7. Cost-effective.
8. Low maintenance cost.

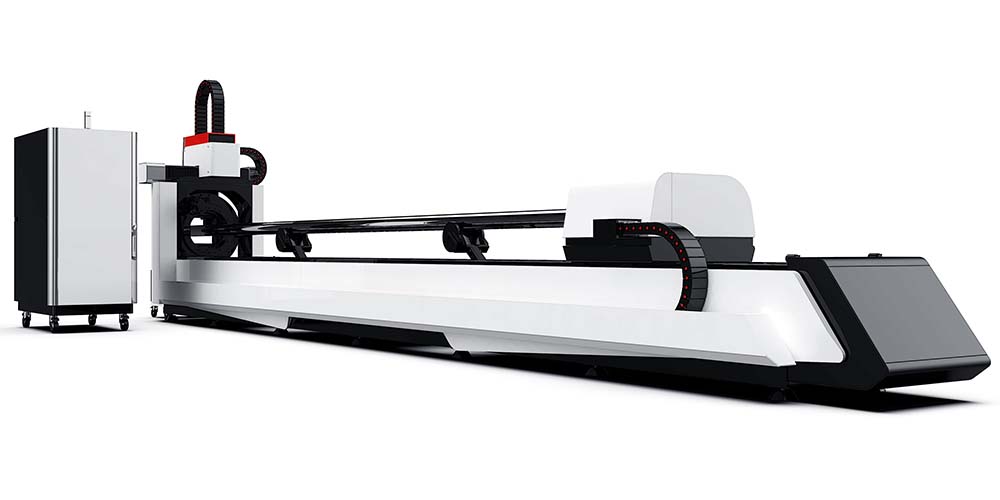

IF60220T Series Metal tube laser cutter is also called tube laser cutting machine,which is used for cutting round tube,square tube and other metal tube. Pipe processing range 6000mm* φ10~220mm (square tube: 10*10-155*155mm).
IF60220T Series Metal tube laser cutter, specially designed for metal tube/pipe laser cutting. The double chuck structure can cut metal pipes with a diameter between 10-220mm. Equipped with 1000w-3000w fiber laser, the tube length can be 3m, 6m, 9m, with an independent cabinet with built-in air-conditioning, and an automatic loading and unloading device can be installed to realize automatic processing.

Product Parameters
Model	IF-60160T	IF-60220T
Pipe Section Shape	Round/Square Tube/Rectangular	Round/Square Tube/Rectangular
Pipe processing range	(Round tube:6100mm* φ10~160mm)	(Round tube:6000mm* φ10~220mm)
Pipe processing range	(Square tube: 1010~110110mm)	(Square tube: 1010~155155mm)
Laser Power	1kw/1.5kw/2kw/3kw	1kw/1.5kw/2kw/3kw
Maximum Speed	100m/min	100m/min
Maximum Rotational Speed	120r/min	100r/min
Positioning Accuracy	±0.05mm	±0.05mm
Repeated Positioning Accuracy	±0.02mm	±0.02mm
Positional Accuracy	±0.03mm	±0.03mm
Re-positional Accuracy	±0.02mm	±0.02mm
Chuck Max Speed	80r/min	80r/min
Max Speed of Chuck Feed Axis	90m/min	90m/min
Max Speed of Laser Head Axis	90m/min	90m/min
Max Accelerated Speed of Chuck Feed Axis	1G	1G
Max Accelerated Speed of Laser Head Axis	1G	1G
Max Accelerated Speed of Z Axis	60m/min	60m/min

Application

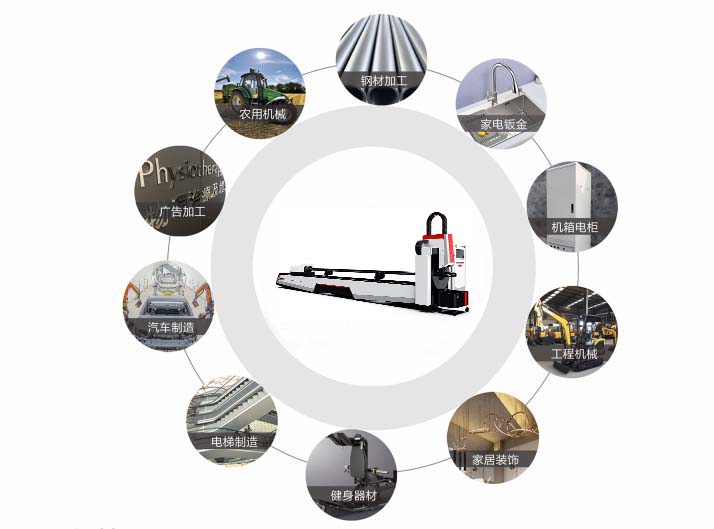

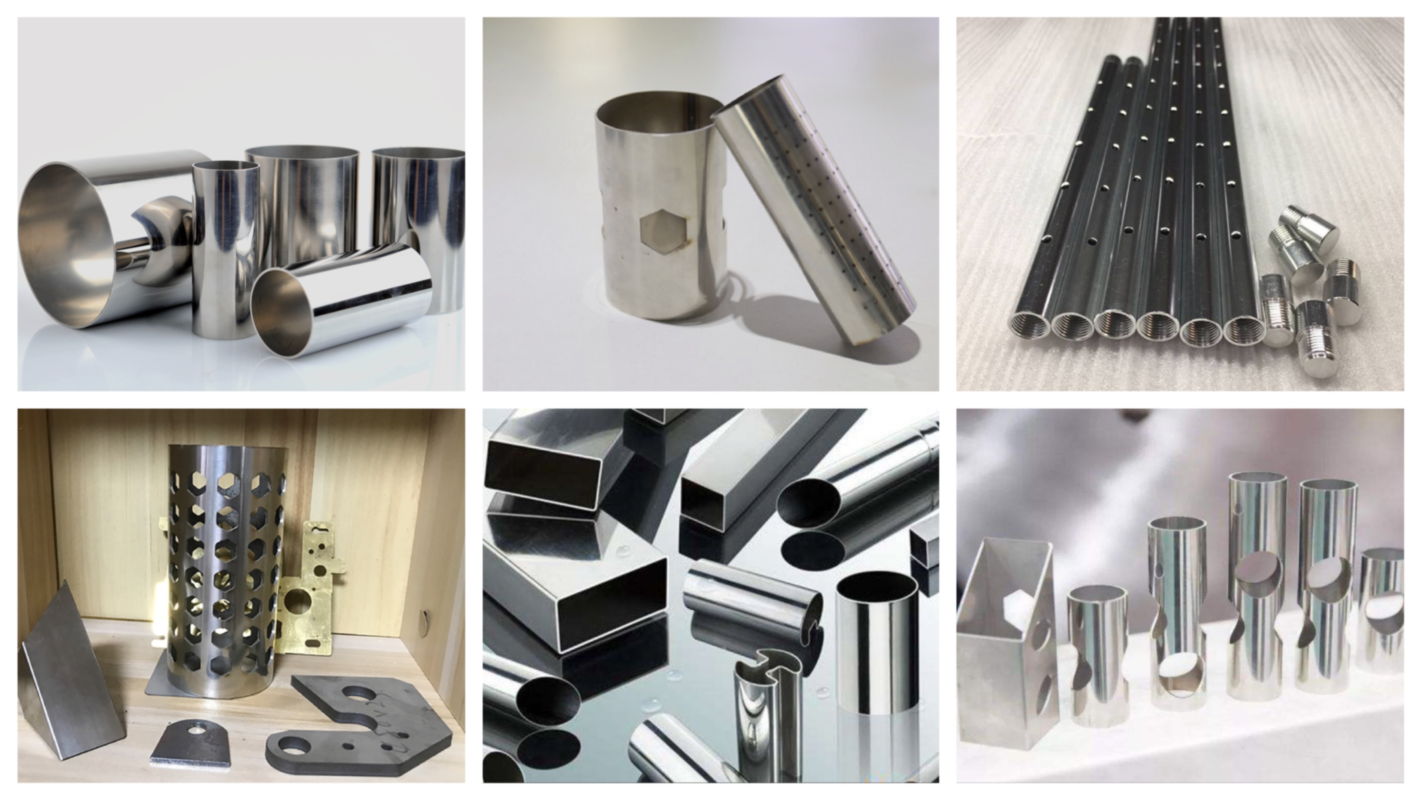

IF60220T Series Metal tube laser cutting machine can cut the following metal tubes: round tube, square tube, rectangular tube, D-shaped tube, triangle tube, elliptical pipe and other diameter imaginable special-shaped pipe angle steel, channel steel and H-shaped steel.

Features

IF60220T Series Metal tube cutting machine frame and worktable adopts integrated welding made as standard large machine after stress relief annealing, machining on plano miller and then the vibration aging treatment. These sequence of processing of frames makes it high strength, high precision and keep the normal use of 20 years without deformation.
X and Y axis equipped with A.C servo motors and aluminum casted cross beam gives high precision, high speed, big torque, big inertia, performance stability and durabilit y, guarantee the high speed and ac celeration of the whole machine.The core drive components and control system are imported parts, with high acceleration and stable dynamic performance.It can realize automatic feeding, alignment and measurement of tube material, and realize efficient cutting.
The electric control box is equipped with intelligent temperature control system to realize stable operation under various extreme weather conditions such as high temperature and low temperature.The intelligent dual temperature control cold water system realizes the independent control of the laser and the optical system, and realizes the stable operation in the harsh environment.
Advanced CNC control system, it can read AI,PLT,DXF,Dst,Dwg and LAS directly, easy to operate.
