china IFCL200 200W MOPA Handheld Fiber Laser Cleaning Machine

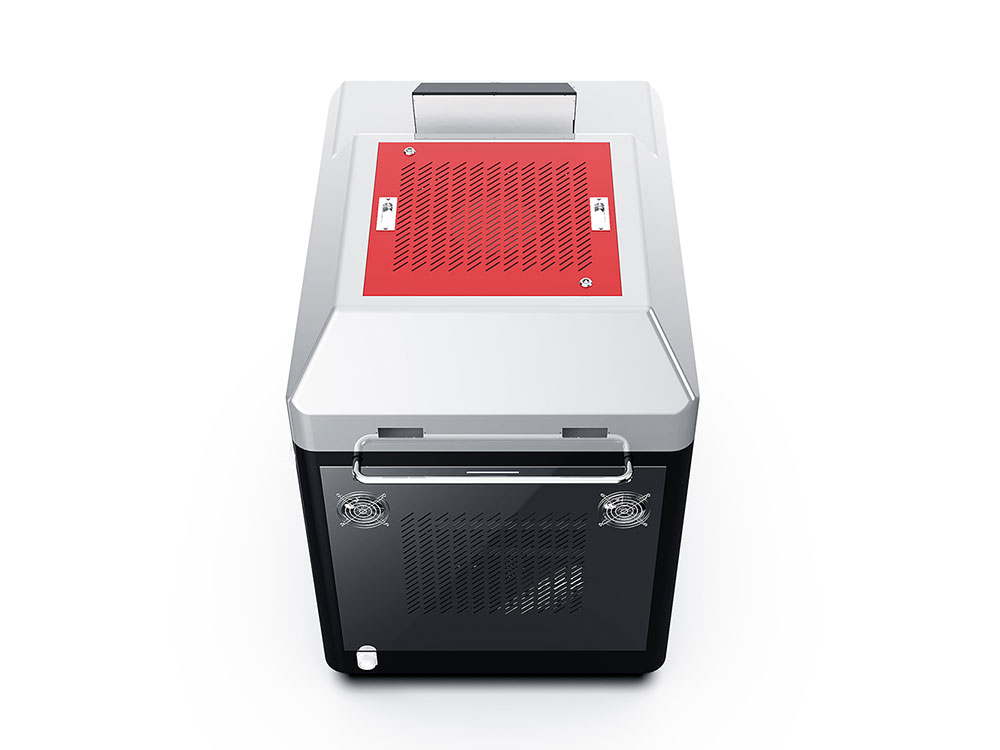

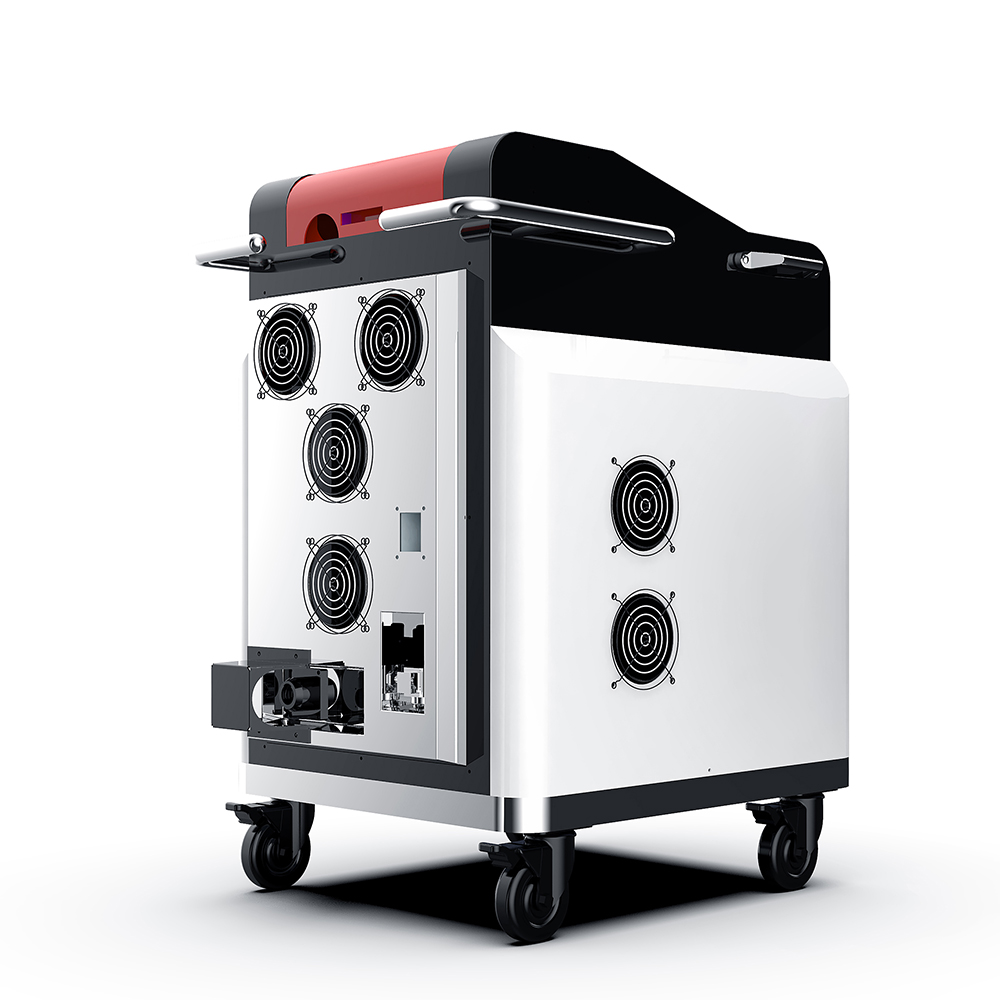

IFCL200 200W MOPA Handheld Fiber Laser Cleaning Machine

1.No consumables, no chemical pollution.
2.No noise, energy saving and electricity saving.
3.No contact, no grinding, no stress, minimal damage to the substrate.
4.Remove pollution particles below nanometer level, high cleanliness.
5.Optical fiber transmission, movable operation, can clean the hard-to-reach parts.
6.Realize rapid cleaning of heavy pollutants and high-speed cleaning of light pollutants.
7.Laser cleaning system is stability, no maintenance.

Laser cleaning equipment is a new generation of surface cleaning high-tech products. Laser cleaning has the characteristics of non grinding and non-contact. It can be used not only to remove organic pollutants, but also to remove inorganic substances. It is very easy to install, manipulate and achieve automate.
High efficiency and environmental protection, no chemical pollution, easy operation, you only turn on the power and open the device, machine will be cleaned with no chemical reagents, no media, no dust and no water. No disassembly and transportation of molds, no damage to the substrate surface, no consumables when powered on, adjustable laser parameters, fit curved surface cleaning, good surface cleanliness. Laser cleaning machine can clean the resin of subject surface, oil stains, stains, dirt, rust, coating, coating, paint, etc.

Comparison of Different Cleaning Methods
Comparison item	Laser cleaning	Chemical cleaning	Mechanical cleaning	Dry ice cleaning	Ultrasonic cleaning
Cleaning Method	Laser,non-contact cleaning	Chemical cleaning agent contact type	Mechanical/sandpaper contact type	Dry ice,non-contact	Cleaning agent contact type
Workpiece Damage	Slight	Damaged	Damaged	No Damage	No Damage
Cleaning Efficiency	High	Low	Low	Medium	Medium
Cleaning effect	Very good high cleanliness	Generally,uneven	Generally,uneven	Excellent,uneven	Excellent small cleaning area
Safety/Environmental Protection	No pollution	Polluted environment	Polluted environment	No pollution	No pollution
Consumables	Only electricity	Chemical cleaning agent	Sandpaper,griding wheel whetstone,etc.	Dry ice	Dedicated cleaning fluid
Operation	Easy to operate handheld or automated	Complicated process high requirements need pollution protection	Manual operation need pollution protection	Easy to operate handheld or automated	Easy to operate but need to add consumables manually
Cost investment	High initial investment,no consumables,low maintenance cost	Low initial investment,high cost of consumables	High initial investment,low labor cost for consumables	Medium investment,high cost of consumables	Low initial investment,medium cost of consumables

Specification
Model	IFCL-100	IFCL-200	IFCL-500
Laser Power	100W	200W	500W
Laser Wavelength	1064±5nm
Optional	Hand/automatic
Scanning width	10-100mm
Working temperature	0-60°C
Pulse width（ns）	130-160
Power adjustment range（%）	10-100(Gradient adjustable)
Consumption	1000W	2500W	4000W

Feature

1. Perfect appearance design, convenient to carry and transport.
2. The body is small and exquisite and does not occupy any space.
3. Using MOPA laser, powerful and stable performance.
4. The laser head is small, light and easy to move
5. The wireless remote control function is safe and practical.
